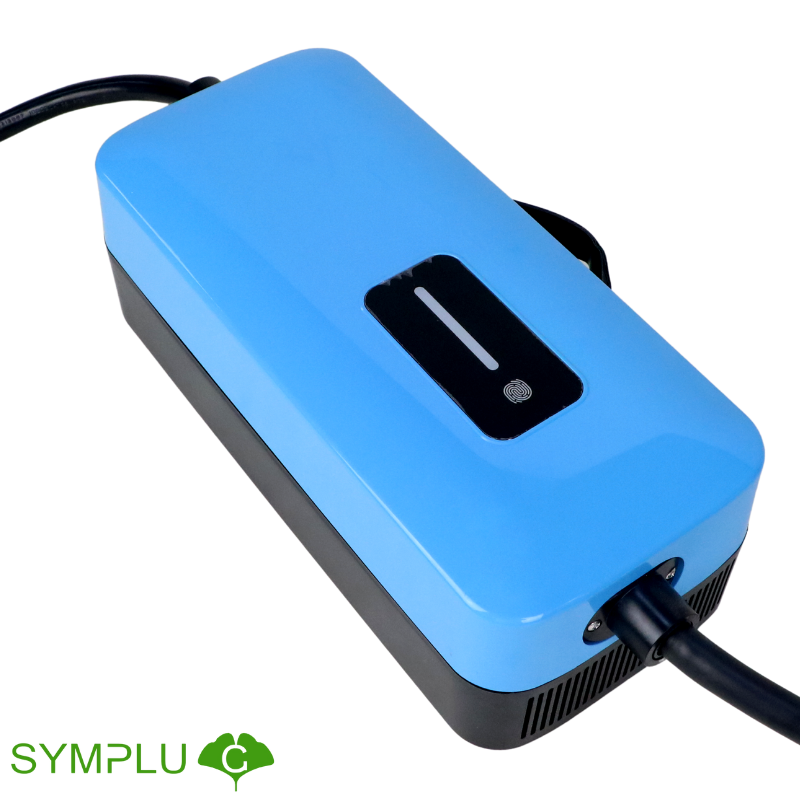

On-Board 3.3 KW DC Charging Pile
Maximum 3.3KW
DC charger
Plug - and - Play
GBT standard
It is an on - board DC charging pile with a 12 - months warranty.. Its AC input supports single - phase, with a voltage range of 176 - 264VAC, a rated frequency of 50/60Hz, and a maximum current of less than 17A. The DC output power can reach up to 3.3KW, with a voltage range of 200 - 470VDC and a current range of 0 - 7.5A. The power can be switched by software. It has multiple alarm and protection functions, supports CAN bus/serial communication, and has a plug - and - play mode. It supports portable and wall - mounted home use, as well as multiple startup methods, and indicates working and fault status through indicator lights.
Category | Sub - category | Specification Parameters |
Standard | GBT18487.1 - 2015 | DC - related part |
AC Input | Input System | Single - phase L/N + PE |
Voltage Range | 176VAC - 264VAC | |
Rated Frequency | 50Hz/60Hz | |
Maximum Input Current | <17A | |
THD | ≤5% | |
Power Factor | ≥0.95 | |
Efficiency | ≥94%(@750V, ≥50% load) | |
DC Output | Output Power | Maximum 3.3KW |
Power Switching | Software - controlled 1.6KW - 3.3KW | |
Voltage Range | 200VDC - 470VDC | |
Constant - Power Output Voltage Range | 200V - 330V, current: 7.5A; 330VDC - 470VDC (3.3KW) constant - power | |
Output Current | 0 - 7.5A | |
Voltage Regulation Accuracy | <±1% | |
Current Regulation Accuracy | ≤±1% (output load 20% - 100% of the rated range) | |
Output Current Limiting | Continuously adjustable from 1 - 7.5A | |
Environmental Conditions | Operating Temperature | - 40°C - +75°C, derating above +55°C |
Storage Temperature | - 40°C - +70°C | |
Relative Humidity | ≤95% RH, no condensation | |
Cooling Method | Forced air cooling | |
Altitude | 2000m, derating is required above 2000m |
Working State | Indicator Definition | |
Normal Standby | The indicator light is white | |
Connection and Communication | The indicator light blinks green | |
Charging | 0 - 19% | Indicator 1 blinks |
30 - 39% | Indicator 1 is on constantly, Indicator 2 blinks | |
40 - 59% | Indicators 1 and 2 are on constantly, Indicator 3 blinks | |
60 - 79% | Indicators 1, 2, and 3 are on constantly, Indicator 4 blinks | |
80 - 99% | Indicators 1, 2, 3, and 4 are on constantly, Indicator 5 blinks | |
Fully Charged (100%) | All indicator lights are on constantly |
