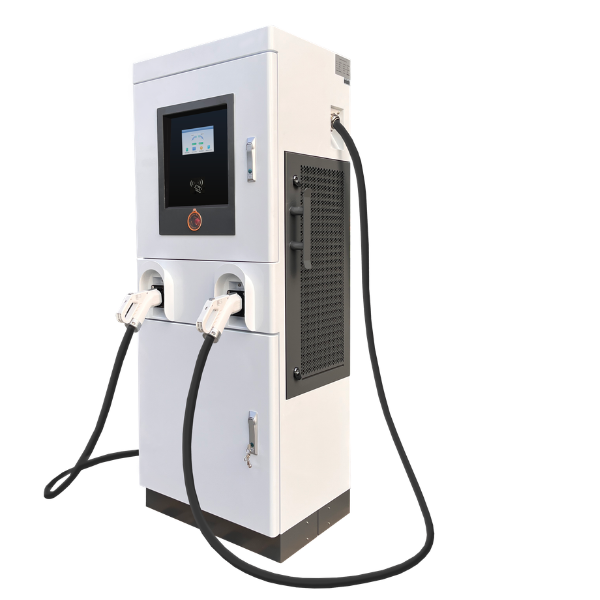

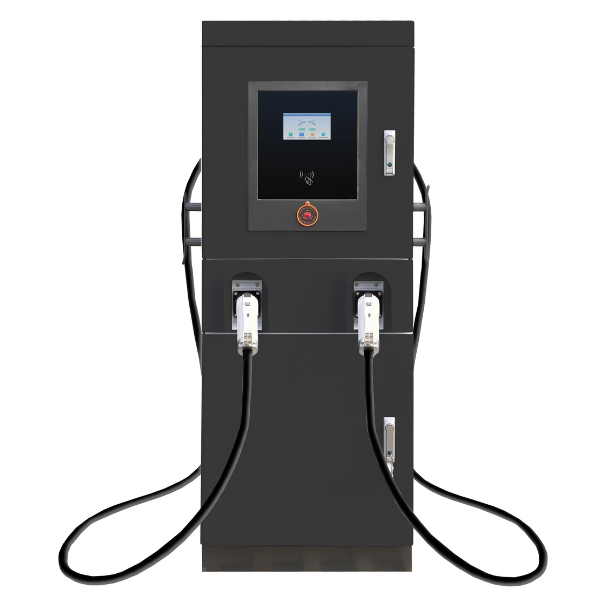

Floor-standing Dual-Gun DC Fast EV Charger
60kW / 80kW / 120kW / 160kW / 180kW
Neat cable storage, space-saving layout
CCS1, CCS2, GB/T, CHAdeMO
This SYM-DC-FF series DC fast charger adopts an innovative front-mounted gun holster design, which neatly accommodates charging cables, keeps the charging site tidy and saves more installation space. Equipped with dual charging guns, it can charge two electric vehicles at the same time to improve charging efficiency.
Compatible with CCS1, CCS2, GB/T and CHAdeMO four mainstream global charging standards, it can match almost all passenger cars, electric vans, buses and other new energy vehicles on the market.
Public roadside charging stations & highway service areas
Commercial shopping mall, office park and community large parking lots
Logistics distribution parks, taxi & bus fleet stations
Industrial zones, scenic spots and property centralized charging projects
The whole machine reaches IP54 protection grade, adapting to long-term outdoor all-weather stable operation. Users can start charging via RFID card or mobile APP, and operators can realize centralized remote management through OCPP platform. We support OEM & ODM personalized customization for global commercial charging projects.
| Item | Specification |
|---|---|
| Model | SYM-DC-FF |
| Output Power | 60kW / 80kW / 120kW / 160kW / 180kW |
| Core Functions | Swipe Card, APP, OCPP, Load balancing (optional) |
| Output Voltage | 200-1000V |
| Input Voltage | 285-475V |
| Power Connection | 3P+N+PE |
| Product Dimension | 1700730500mm (60/80kW); 1880700530mm (120/160/180kW) |
| Package Weight | 294kg / 300kg / 336kg / 366kg / 384kg |
| IP Rating | IP54 |
| Standard Cable | 5m (customizable length available) |
| Display | 7-inch touch screen |
| Supported Protocols | CCS1, CCS2, GB/T, CHAdeMO, OCPP 1.6, ISO 15118 |
| Certification | CE |
