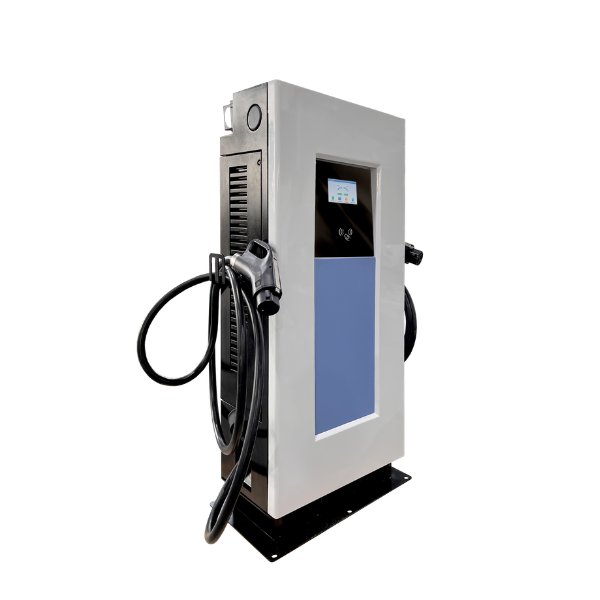

Floor-standing Dual-Gun DC Fast EV Charger 40kW-80kW
40kW / 60kW / 80kW
Charge two electric vehicles at the same time
CCS1, CCS2, GB/T, CHAdeMO
Swipe Card, APP, OCPP, Optional Load Balancing
SYM-DC-DD medium-power floor-mounted DC charger is equipped with two charging guns to realize simultaneous charging of two EVs, greatly improving charging site utilization efficiency. With a compact cabinet structure, it occupies less installation space and is very friendly for parking lots with limited area.
This charger supports four mainstream global charging protocols, perfectly matching most electric passenger cars, light commercial vehicles and electric vans worldwide. Built with IP54 waterproof and dustproof housing, it can run stably outdoors all year round under various weather conditions.
Shopping mall, office building and residential community public parking lots
Taxi stations, logistics fleets and vehicle service centers
Scenic spots, industrial parks and campus centralized charging areas
Small-scale public charging stations and property charging projects
Users can activate charging via RFID card or mobile APP. Operators can carry out unified background monitoring, billing and equipment management through the OCPP cloud platform. Customized cable length, logo appearance and functional development are available via our OEM & ODM service.
| Item | Specification |
|---|---|
| Model | SYM-DC-DD |
| Output Power | 40kW / 60kW / 80kW |
| Basic Functions | Swipe Card, APP, OCPP, Load balancing (optional) |
| Output Voltage | 200-1000V |
| Input Voltage | 285-475V (40/60kW); 260-530V (80kW) |
| Power Connection | 3P+N+PE |
| Product Size | 1494690350mm |
| Package Weight | 168kg / 211kg / 236kg |
| IP Rating | IP54 |
| Standard Charging Cable | 5m (customizable length) |
| Display | 7-inch touch screen |
| Supported Protocols | CCS1, CCS2, GB/T, CHAdeMO, OCPP 1.6, ISO 15118 |
| Certification | CE |
